TTSP-3

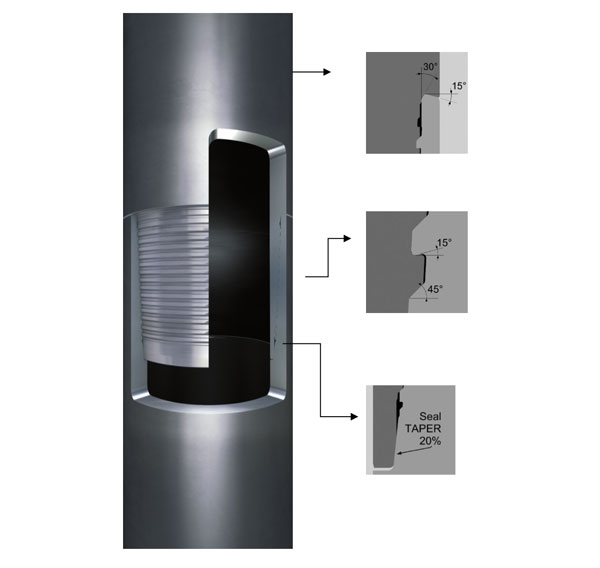

結構特點
●無接箍設計。
●采用改進型偏梯形螺紋 ，連接強度高。
●密封結構采用錐面—錐面金屬密封。
●內外扭矩臺肩設計。
使用性能
●在復合載荷系統下體現優秀的氣密封性。
●具有良好的抗粘扣性能。
結構特點
●無接箍設計。
●采用改進型偏梯形螺紋 ，連接強度高。
●密封結構采用錐面—錐面金屬密封。
●內外扭矩臺肩設計。
使用性能
●在復合載荷系統下體現優秀的氣密封性。
●具有良好的抗粘扣性能。
●扭矩臺肩輔助密封。
●接頭內壁內平設計可有效減少介質在管道內的紊流現象。
●接頭低應力設計，保證接頭在腐蝕環境中安全可靠。
特殊扣產品規格數據
特殊扣產品規格數據
| 規格外徑 | 名義重量 | 鋼級 | 壁厚mm | TTSP-3 |
| lb/f | ||||
| 60.33(2.375") | 4.60 | C,L,N,P,Q,R,T | 4.83 | ◆ |
| 5.10 | C,L,N,P,Q,R,T | 5.54 | ◆ | |
| 5.80 | C,L,N,P,Q,R,T | 6.45 | ◆ | |
| 6.30 | C,L,N,P,Q,R,T | 7.11 | ◆ | |
| 7.35 | C,L,N,P,Q,R,T | 8.53 | ◆ | |
| 73.03(2 7/8") | 6.40 | C,L,N,P,Q,R,T | 5.51 | ◆ |
| 7.80 | C,L,N,P,Q,R,T | 7.01 | ◆ | |
| 8.60 | C,L,N,P,Q,R,T | 7.82 | ◆ | |
| 9.80 | C,L,N,P,Q,R,T | 9.19 | ◆ | |
| 10.70 | C,L,N,P,Q,R,T | 10.29 | ◆ | |
| 88.90(3 1/2") | 7.70 | C,L,N,P,Q,R,T | 5.49 | ◆ |
| 9.20 | C,L,N,P,Q,R,T | 6.45 | ◆ | |
| 10.20 | C,L,N,P,Q,R,T | 7.34 | ◆ | |
| 12.70 | C,L,N,P,Q,R,T | 9.53 | ◆ | |
| 13.70 | C,L,N,P,Q,R,T | 10.49 | ◆ | |
| 14.70 | C,L,N,P,Q,R,T | 11.40 | ◆ | |
| 15.50 | C,L,N,P,Q,R,T | 12.09 | ◆ | |
| 101.60(4") | 9.50 | C,L,N,P,Q,R,T | 5.74 | ◆ |
| 10.90 | C,L,N,P,Q,R,T | 6.65 | ◆ | |
| 11.30 | C,L,N,P,Q,R,T | 7.26 | ||
| 13.20 | C,L,N,P,Q,R,T | 8.38 | ◆ | |
| 14.80 | C,L,N,P,Q,R,T | 9.65 | ◆ | |
| 16.50 | C,L,N,P,Q,R,T | 10.92 | ◆ | |
| 11.60 | C,L,N,P,Q,R,T | 6.35 | ◆ | |
| 12.60 | C,L,N,P,Q,R,T | 6.88 | ◆ | |
| 13.50 | C,L,N,P,Q,R,T | 7.37 | ◆ | |
| 15.10 | C,L,N,P,Q,R,T | 8.56 | ◆ | |
| 17.00 | C,L,N,P,Q,R,T | 9.65 | ◆ | |
| 18.90 | C,L,N,P,Q,R,T | 10.92 | ◆ | |
| 21.50 | C,L,N,P,Q,R,T | 12.70 | ◆ | |
| 23.70 | C,L,N,P,Q,R,T | 14.22 | ◆ | |
| 127.0(5") | 13.00 | C,L,N,P,Q,R,T | 6.43 | ◆ |
| 15.00 | C,L,N,P,Q,R,T | 7.52 | ◆ | |
| 18.00 | C,L,N,P,Q,R,T | 9.19 | ◆ | |
| 20.30 | C,L,N,P,Q,R,T | 10.36 | ◆ | |
| 20.80 | C,L,N,P,Q,R,T | 10.72 | ◆ | |
| 21.40 | C,L,N,P,Q,R,T | 11.10 | ◆ | |
| 23.20 | C,L,N,P,Q,R,T | 12.14 | ◆ | |
| 24.10 | C,L,N,P,Q,R,T | 12.70 | ◆ | |
| 139.70(5 1/2") | 15.50 | C,L,N,P,Q,R,T | 6.99 | ◆ |
| 17.00 | C,L,N,P,Q,R,T | 7.72 | ◆ | |
| 20.00 | C,L,N,P,Q,R,T | 9.17 | ◆ | |
| 23.00 | C,L,N,P,Q,R,T | 10.54 | ◆ | |
| 26.00 | C,L,N,P,Q,R,T | 12.09 | ◆ | |
| 28.40 | C,L,N,P,Q,R,T | 13.46 | ◆ | |
| 29.70 | C,L,N,P,Q,R,T | 14.27 | ◆ | |
| 32.00 | C,L,N,P,Q,R,T | 15.54 | ◆ | |
| 168.28(6 5/8") | 23.20 | C,L,N,P,Q,R,T | 8.38 | ◆ |
| 24.00 | C,L,N,P,Q,R,T | 8.94 | ◆ | |
| 28.00 | C,L,N,P,Q,R,T | 10.59 | ◆ | |
| 32.00 | C,L,N,P,Q,R,T | 12.07 | ◆ | |
| 35.00 | C,L,N,P,Q,R,T | 13.34 | ◆ | |
| 177.8(7") | 23.00 | C,L,N,P,Q,R,T | 8.05 | ◆ |
| 26.00 | C,L,N,P,Q,R,T | 9.19 | ◆ | |
| 29.00 | C,L,N,P,Q,R,T | 10.36 | ◆ | |
| 32.00 | C,L,N,P,Q,R,T | 11.51 | ◆ | |
| 35.00 | C,L,N,P,Q,R,T | 12.65 | ◆ | |
| 38.00 | C,L,N,P,Q,R,T | 13.72 | ◆ | |
| 41.00 | C,L,N,P,Q,R,T | 14.99 | ◆ | |
| 193.68(7 5/8") | 26.40 | C,L,N,P,Q,R,T | 8.33 | ◆ |
| 29.70 | C,L,N,P,Q,R,T | 9.53 | ◆ | |
| 33.70 | C,L,N,P,Q,R,T | 10.92 | ◆ | |
| 35.80 | C,L,N,P,Q,R,T | 11.81 | ◆ | |
| 39.00 | C,L,N,P,Q,R,T | 12.70 | ◆ | |
| 42.80 | C,L,N,P,Q,R,T | 14.27 | ◆ | |
| 45.30 | C,L,N,P,Q,R,T | 15.11 | ◆ | |
| 47.10 | C,L,N,P,Q,R,T | 15.88 | ◆ | |
| 219.08(8 5/8") | 32.00 | C,L,N,P,Q,R,T | 8.94 | ◆ |
| 36.00 | C,L,N,P,Q,R,T | 10.16 | ◆ | |
| 40.00 | C,L,N,P,Q,R,T | 11.43 | ◆ | |
| 44.00 | C,L,N,P,Q,R,T | 12.70 | ◆ | |
| 49.00 | C,L,N,P,Q,R,T | 14.15 | ◆ | |
| 52.00 | C,L,N,P,Q,R,T | 15.11 | ◆ | |
| 244.48(9 5/8") | 36.00 | C,L,N,P,Q,R,T | 8.94 | ◆ |
| 40.00 | C,L,N,P,Q,R,T | 10.03 | ◆ | |
| 43.50 | C,L,N,P,Q,R,T | 11.05 | ◆ | |
| 47.00 | C,L,N,P,Q,R,T | 11.99 | ◆ | |
| 53.50 | C,L,N,P,Q,R,T | 13.84 | ◆ | |
| 58.40 | C,L,N,P,Q,R,T | 15.11 | ◆ | |
| 59.40 | C,L,N,P,Q,R,T | 15.47 | ◆ | |
| 61.10 | C,L,N,P,Q,R,T | 15.88 | ◆ | |
| 273.05(10 3/4") | 40.50 | C,L,N,P,Q,R,T | 8.89 | ◆ |
| 45.50 | C,L,N,P,Q,R,T | 10.16 | ◆ | |
| 51.00 | C,L,N,P,Q,R,T | 11.43 | ◆ | |
| 55.50 | C,L,N,P,Q,R,T | 12.57 | ◆ | |
| 60.70 | C,L,N,P,Q,R,T | 13.84 | ◆ | |
| 65.70 | C,L,N,P,Q,R,T | 15.11 | ◆ | |
| 298.45(11 3/4") | 47.00 | C,L,N,P,Q,R,T | 9.53 | ◆ |
| 54.00 | C,L,N,P,Q,R,T | 11.05 | ◆ | |
| 60.00 | C,L,N,P,Q,R,T | 12.42 | ◆ | |
| 65.00 | C,L,N,P,Q,R,T | 13.56 | ◆ | |
| 78.80 | C,L,N,P,Q,R,T | 16.95 | ◆ |
